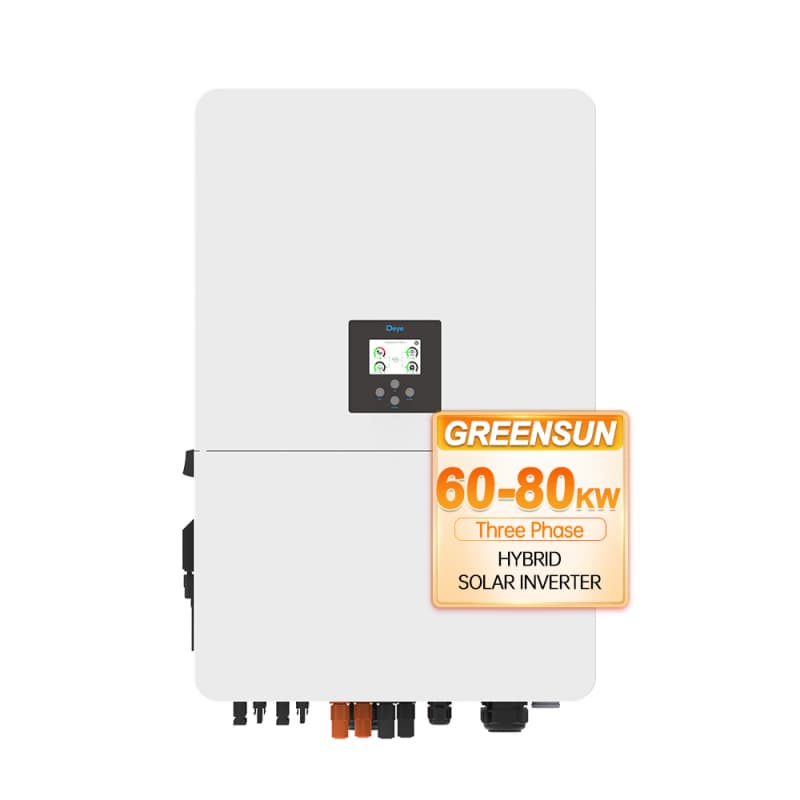

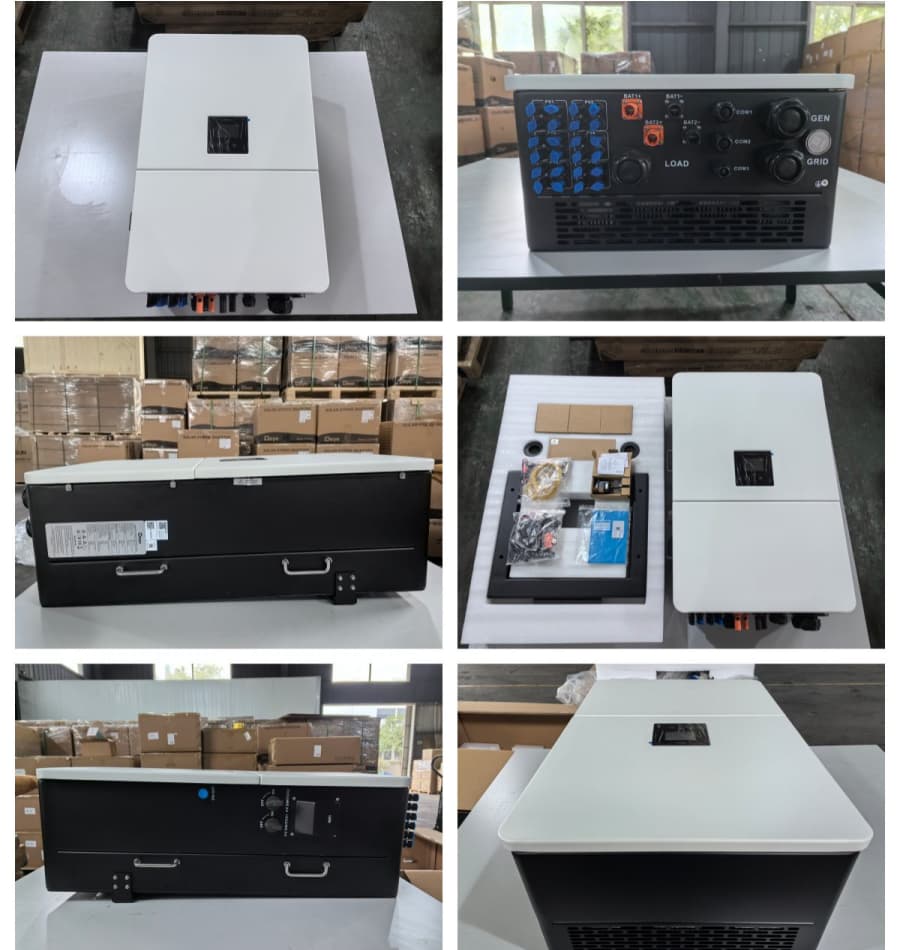

Solar Hybrid Inverter 60KW-80KW For Project and Home

100% unbalanced output, each phase
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel

  • Numéro d'article :

    Solar Hybrid Inverter 60-80KW
  • Commande (MOQ) :

    Negotiable
  • Paiement :

    T/T, etc
  • Origine du produit :

    China
  • Couleur :

    White
  • Port d'expédition :

    Shanghai, Ningbo, Shenzhen
  • Délai de mise en œuvre :

    5-15 Days
  • Lester :

    97.5KG
Nouveaux produits

Product Introduction

Solar Hybrid Inverter



Inverter Parameters


MODEL
SUN-60K-SG02HP3 -EU-EM6
SUN-75K-SG02HP3 -EU-EM6
SUN-80K-SG02HP3 -EU-EM6
Battery Type
Lithium-ion
Battery Voltage Range (V)
160-1000
Max. Charging Current (A)
80+80
Max. Discharging Current (A)
80+80
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
2
Max. PV Access Power (W)
120000
150000
160000
Max. PV Input Power (W)
96000
120000
128000
Max. PV Input Voltage (V)
1000
Start-up Voltage (V)
180
MPPT Voltage Range (V)
150-850
Rated PV Input Voltage (V)
650
Max. Operating PV Input Current (A)
36+36+36+36+36+36
Max. Input Short-Circuit Current (A)
54+54+54+54+54+54
No. of MPP Trackers/
No. of Strings MPP Tracker
6/2+2+2+2+2+2
Rated AC Input/Output Active Power (W)
60000
75000
80000
Max. AC Input/Output Apparent Power (VA)
66000
82500
88000
Rated AC Input/Output Current (A)
91/87
113.7/108.7
121.3/115.9
Max. AC Input/Output Current (A)
100/95.7
125/119.6
133.4/127.6
Max. Continuous AC Passthrough (grid to load) (A
200
Peak Power (off-grid) (W)
1.5 times of rated power, 10s
Rated Input/Output Voltage/Range (V)
220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form
3L+N+PE
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Basic Mode

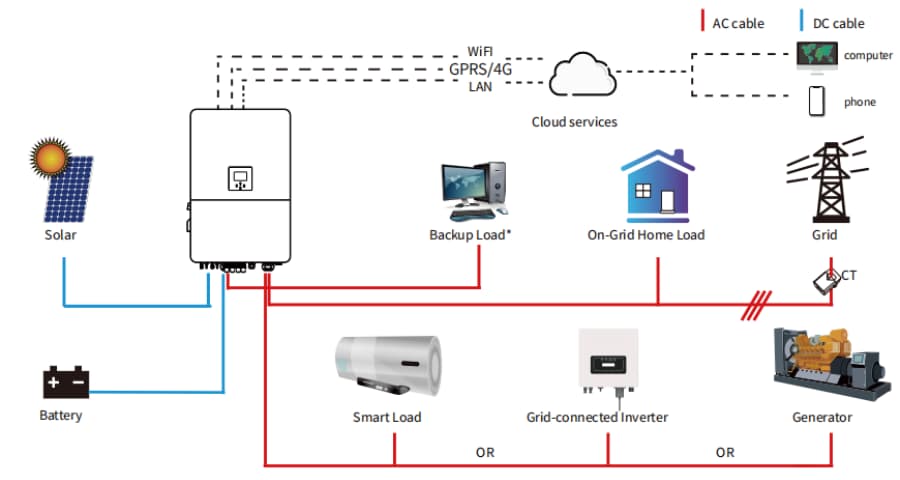

solar hybrid inverter connection diagram

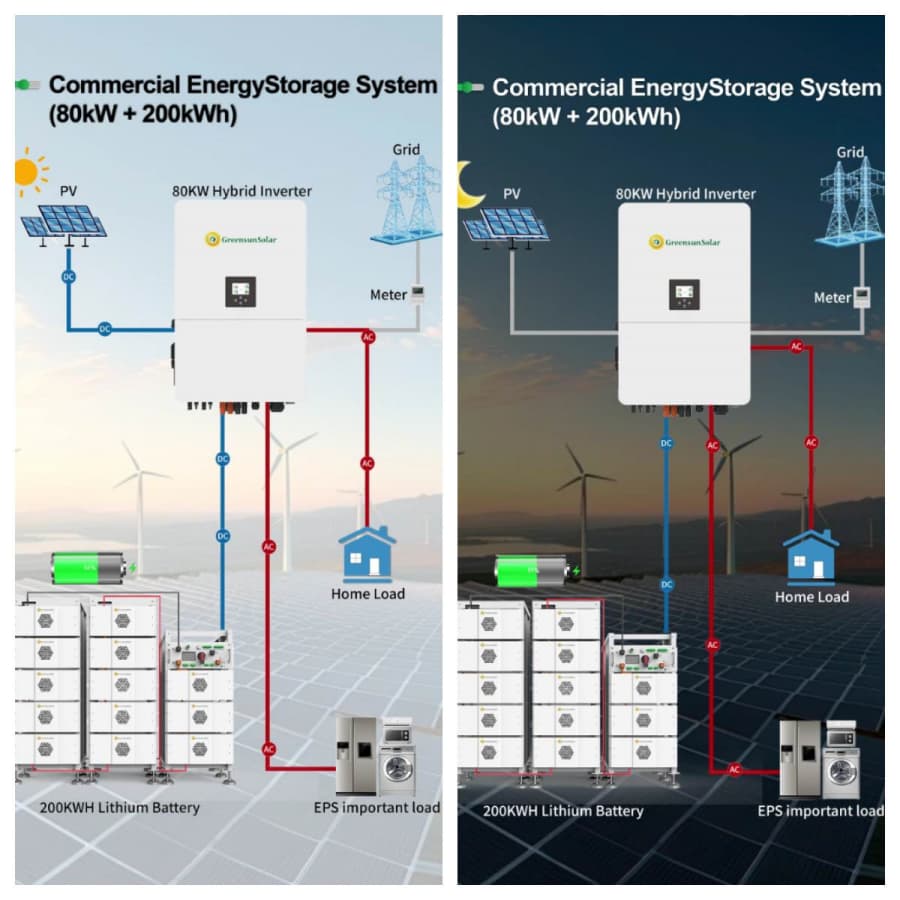

Energy storage system operation(Day&Night)

solar inverter schematic diagram

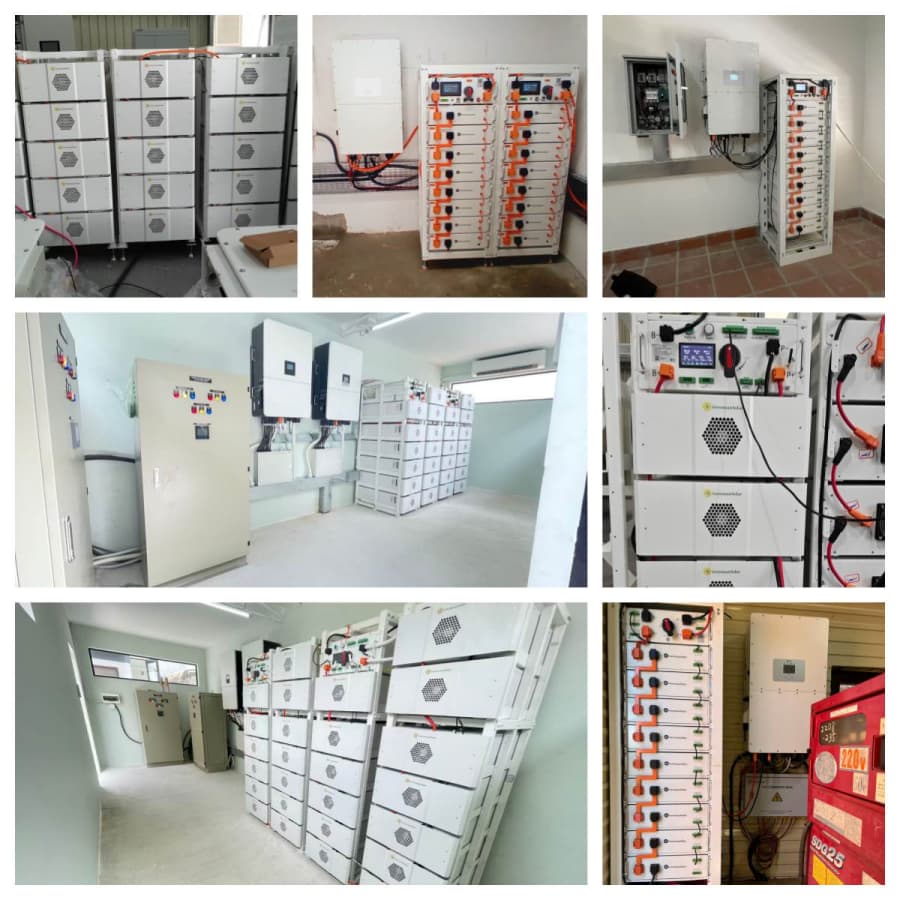

Products&Case
