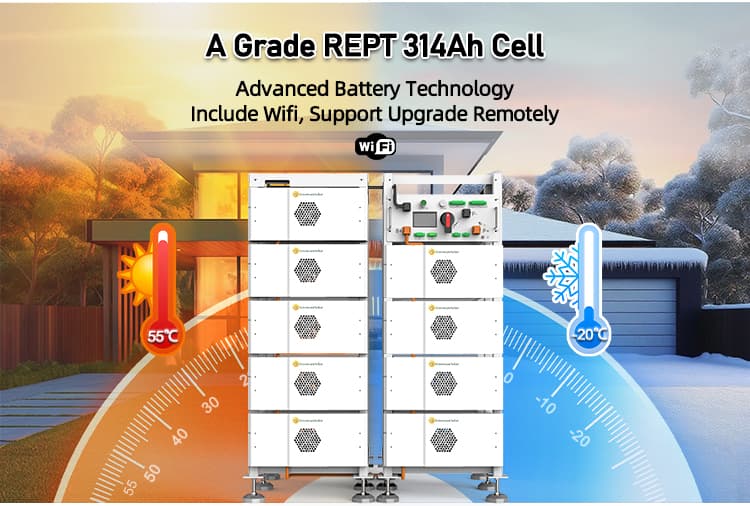

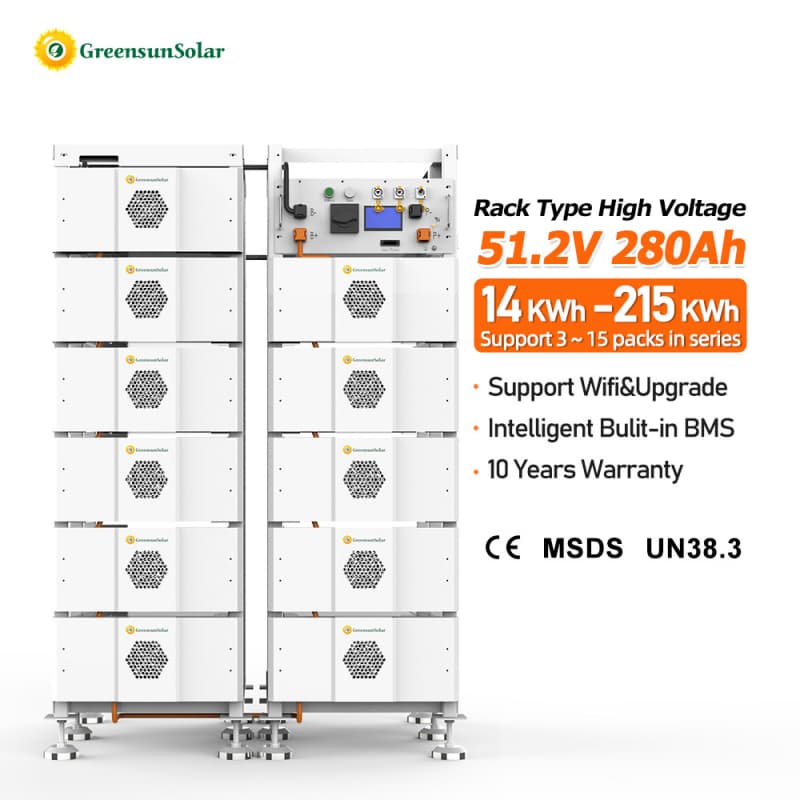

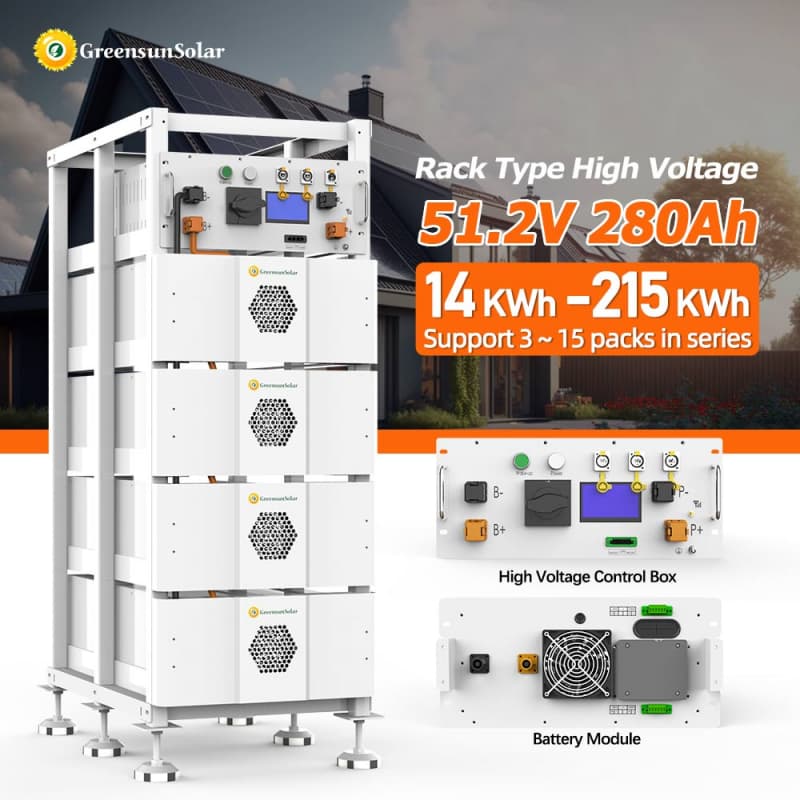

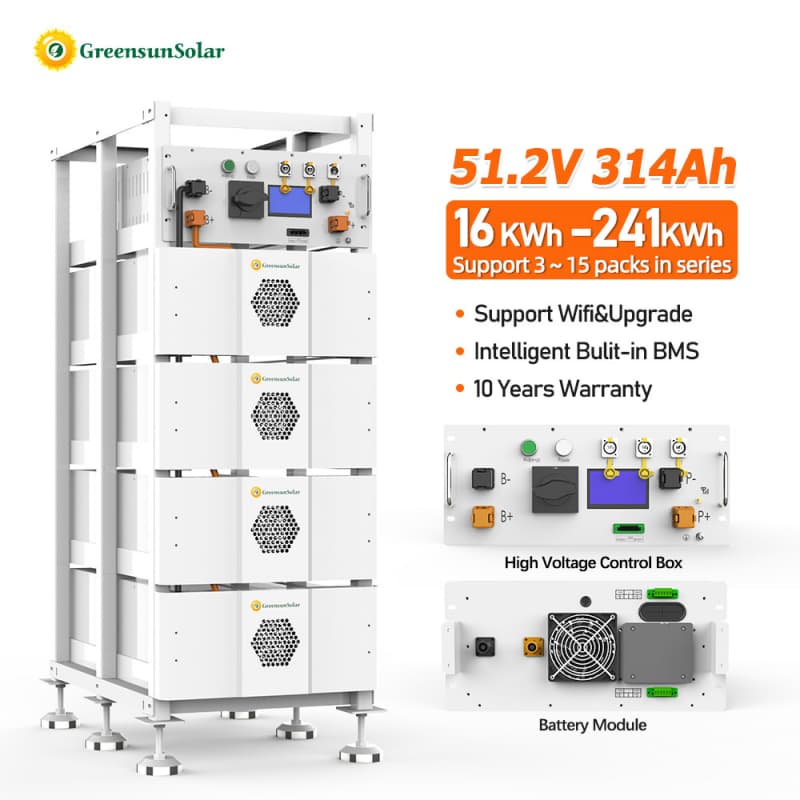

 High Voltage EVE REPT battery cells 280Ah 314Ah Rack Type Battery System ESS
High Voltage Rack mounted lithium battery
High Voltage Lithium Battery 314Ah
high voltage battery rack 280Ah
high voltage battery for solar

High Voltage EVE REPT battery cells 280Ah 314Ah Rack Type Battery System ESS

LiFePO4 Batteries with safety performance and long
cycle life
Intelligent BMS
Support aerosol fifire extinguishing
Support up to 140A current output

  • Marque :

    Greensun Solar

  • Nom du produit :

    High Voltage 280AH 314AH rack mounted battery system

  • Tension nominale :

    51.2V

  • Capacité nominale :

    280Ah/314Ah

  • Type de cellule :

    REPT,EVE, Grade A Lifepo4 battery cells

  • Cycle de vie :

    DOD80%≥6000

  • BMS :

    integrated smart BMS

  • Communication :

    CAN/RS485

  • Garantie :

    10 years

  • Certification :

    CE/UN38.3/MSDS
Renseignez-vous maintenant
CATÉGORIES DE PRODUITS
Nouveaux produits

Greensun High Voltage Lithium Battery System

High voltage lifepo4 battery

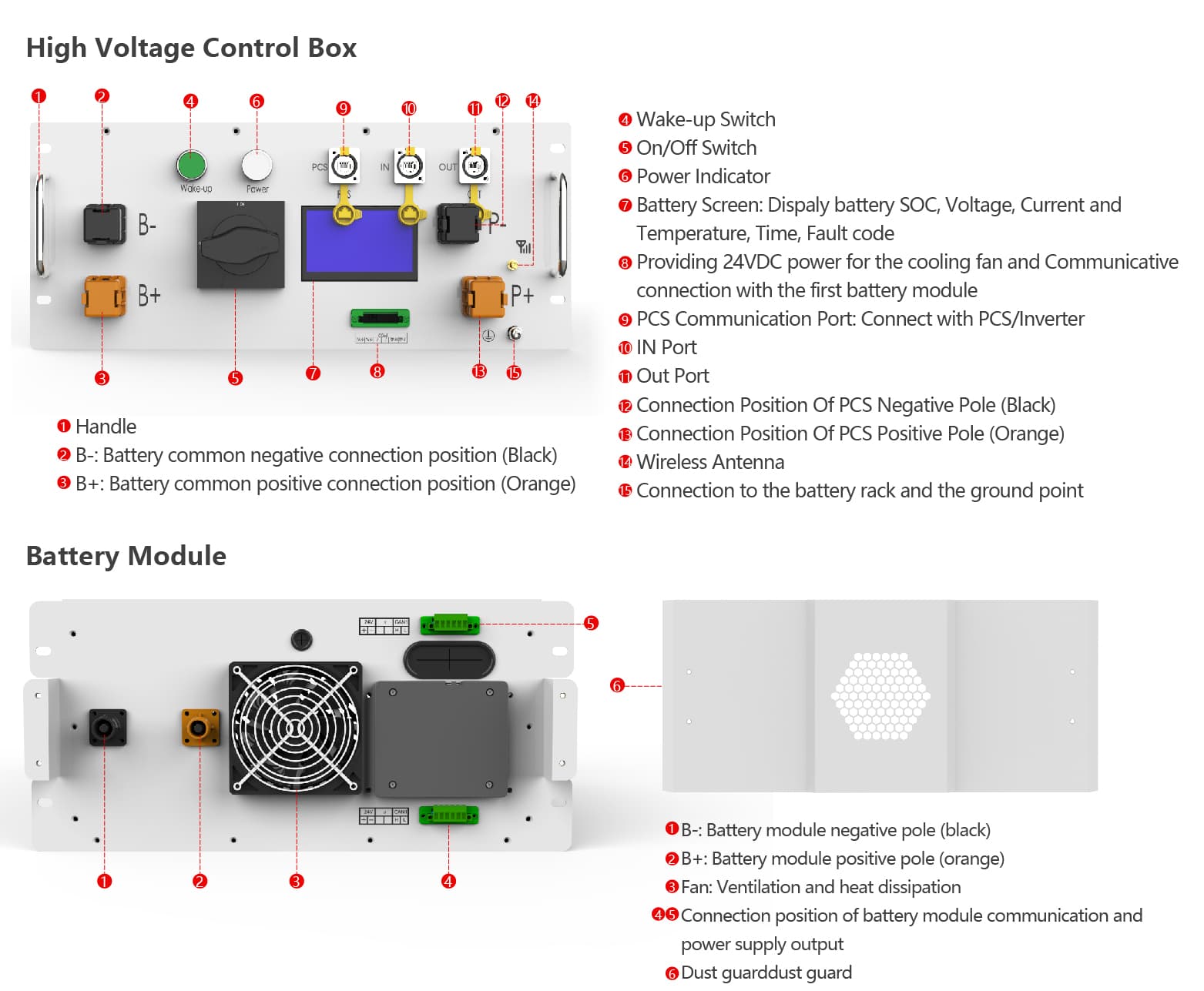

High Voltage Controller Box

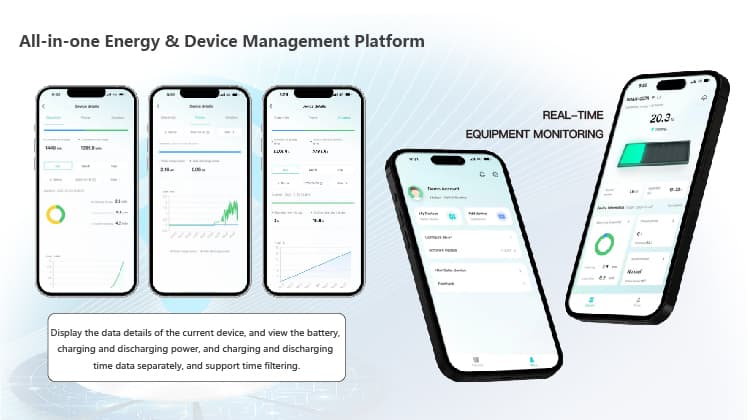

BMS WIFI remote monitoring

Bms wifi monitor app



High Voltage 280Ah 314Ah Battery Datasheet for Review

Battery Module Model
GHR-280
GHR-314
Cell Chemistry
LiFePO4
Module Energy (kWh)
14.336
16.076
Module Nominal Voltage (V)
 51.2
Module Capacity (Ah)
 280 314
Multiple capacity options (for example)
GHR-280-E186
 GHR-280-E200 GHR-280-E215 GHR-314-E209 GHR-314-E225 GHR-314-E241
Battery Module Qty In Series ( Optional )
 13 14 15 13 14 15
System Nominal Voltage (V)
 665.6 716.8 768 665.6 716.8 768
System Energy (kWh)
 186.37 200.70 215.04 209 225.08 241.15
Charge/Discharge
Current(A)
 140A 157A
Dimension (W*D*H, mm)
1184*838*1992
1184*838*2248
1184*838*2248
1184*838*1992
1184*838*2248
1184*838*2248
Weight Approximate (kg)
1621kg
1753kg
1865kg
1647kg
1781kg
1895kg
Installation Location
Rack Mounting
Storage Temperature (°C)
0~35°C
Recommend Depth of Discharge
90%
Cycle Life
25±2℃, 0.5C/0.5C, DOD80%≥6000
Certification
CE/UN38.3/MSDS

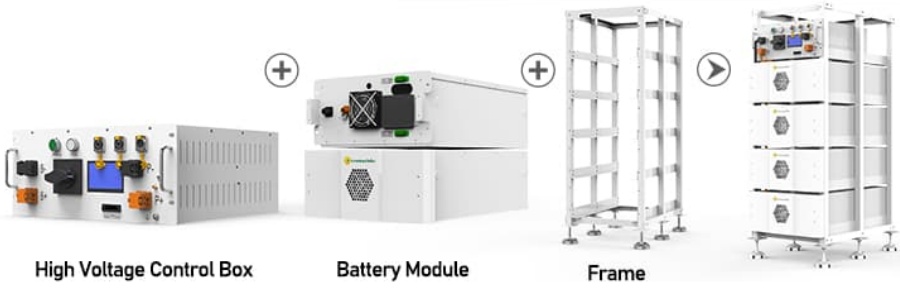

High voltage Lithium Battey Rack

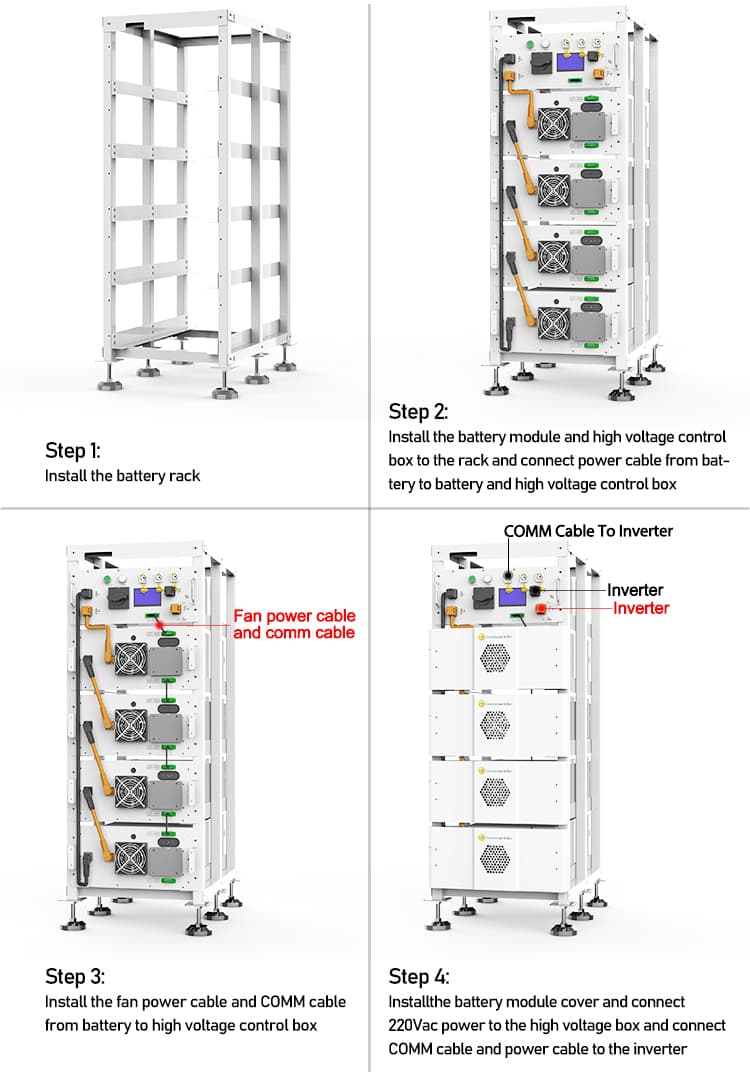

Rack mounted lithium battery installation

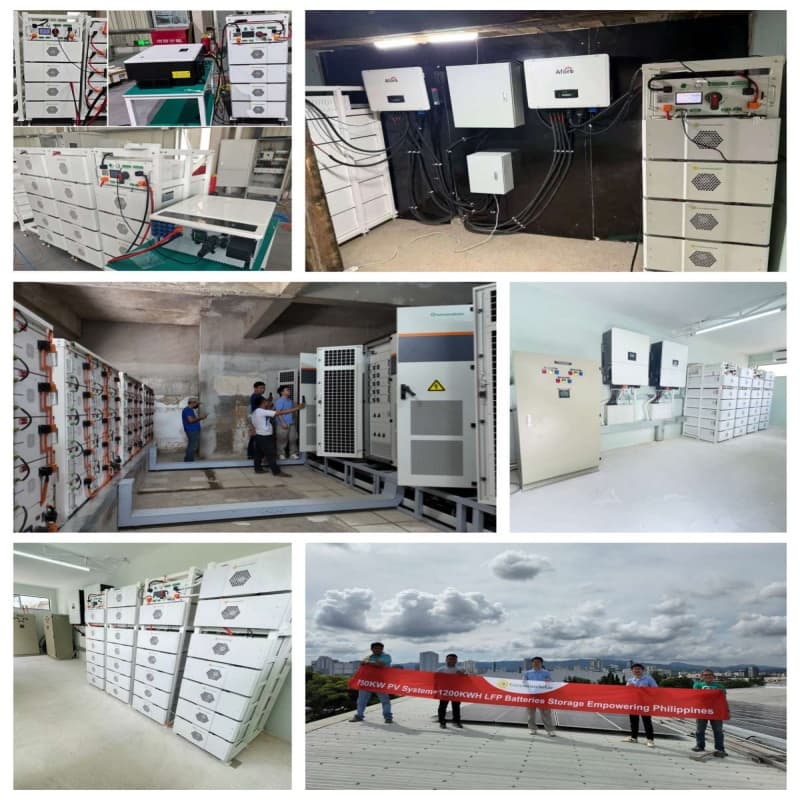

Products&Case
lifepo4 battery 314Ah

International Standard Lithium Battery Transportation packaging
un38.3 standard
Lithium Battery package

Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
