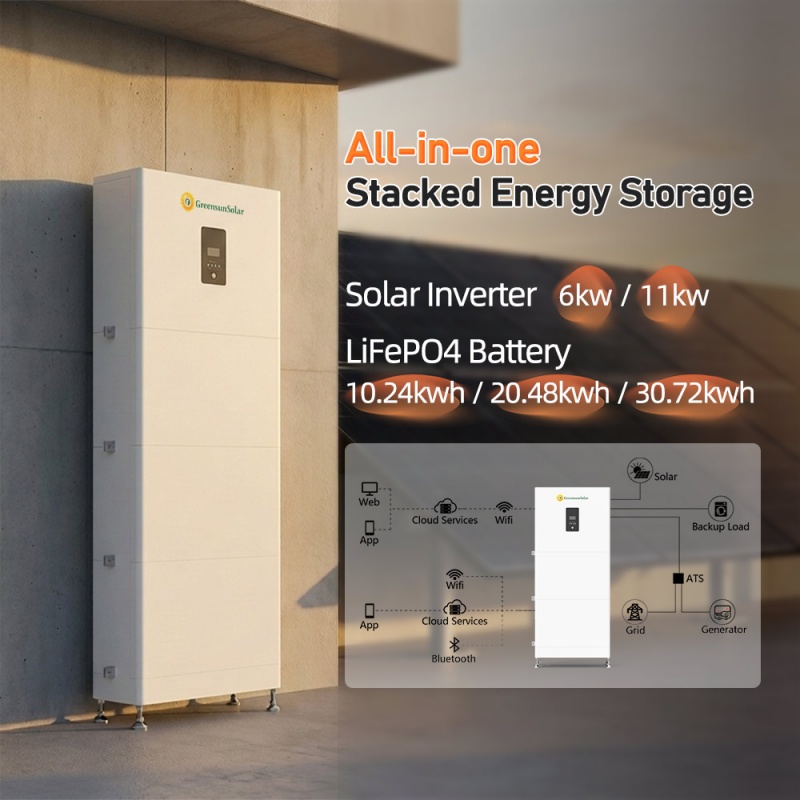

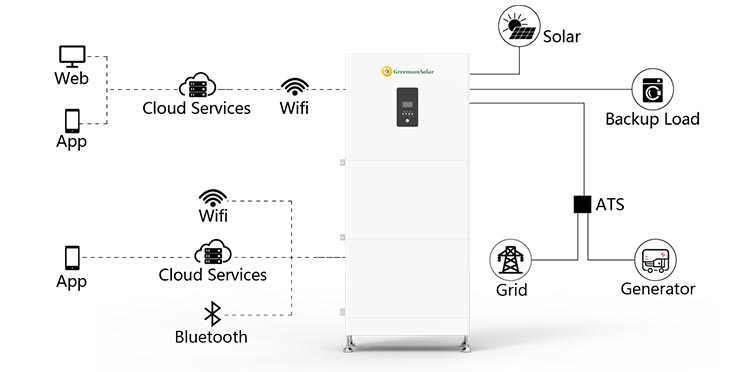

All-in-one solar and storage solution that integrates
the inverter, battery charger, UPS-level switching,
and battery enclosure into a pre-wired modular
Numéro d'article :
G-AIO-200-S6K/S11KCommande (MOQ) :
NegotiablePaiement :
T/T, L/C at sight, Paypal, etcOrigine du produit :
ChinaCouleur :
White or Optional ColorPort d'expédition :
Shanghai, Ningbo, ShenzhenDélai de mise en œuvre :
5-15 daysLester :
up to sizeGreensun Stacked Household Energy Storage All-in-one Machine G-AIO-200-S6K/S11K
|
Model
|
G-AIO-S6K
|
G-AIO-S11K
|
|
Input Sources
|
L+N+PE
|
|
|
Rated Input Voltage
|
220/230/240VAC
|
|
|
Voltage Range
|
90-280VAC±3V (APL Mode) 170-280VAC±3V (UPS Mode)
|
|
|
Frequency
|
50/60Hz (Auto Adaptive)
|
|
|
Rated Capacity
|
6200W
|
11000W
|
|
Output Voltage
|
220/230/240VAC±5%
|
|
|
Output Frequency
|
50/60Hz±0.1%
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Peak Power
|
12400W
|
22000W
|
|
PV Charging Mode
|
MPPT
|
MPPT Dual MPPT
|
|
Max PV Input Power
|
6200W
|
2*5500W
|
|
MPPT Tracking Range
|
120-500Vdc
|
90-500Vdc
|
|
Best Voltage
|
300-400V
|
300-400V
|
|
MAX.Charging Current
|
120A
|
150A
|
|

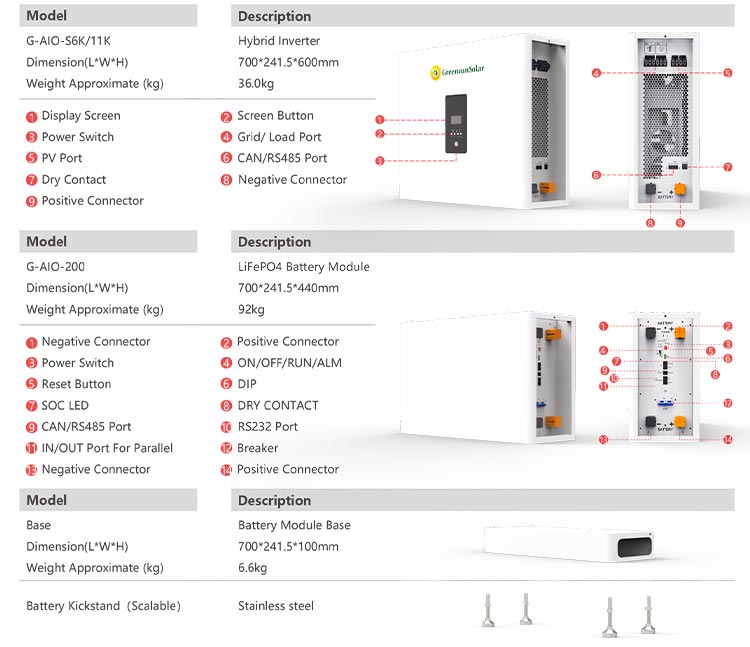

Model
|
G-AIO-200
|
|
|
Battery Chemistry
|
LiFePO4
|
|
|
Built-In Circuit Breaker
|
125A 2P
|
|
|
Nominal Voltage
|
|
|
Parallel connection increases capacity（Multiple combination options）

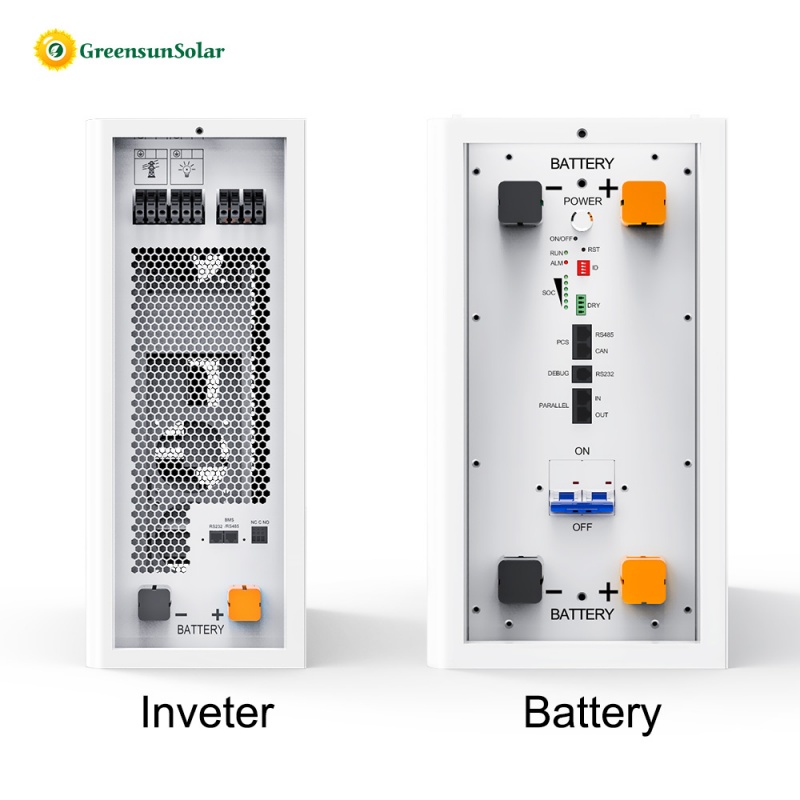

Battery pack connection demonstration

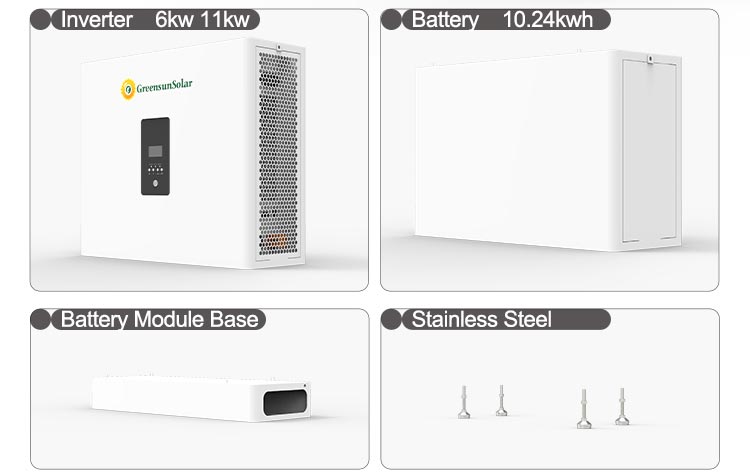

Battery Pack Default Accessories
In the photovoltaic energy storage sector, lithium batteries offer significant advantages over traditional lead-acid batteries.
Higher security, small size, light weight, fast charging speed.
The self-discharge rate is smaller and the energy density is higher.
Higher convenience and longer service life.
This 12.8V series can be used in 4 series to 51.2V, when the battery be used in 4 series, please set chargecut-off voltage to 56V, discharge cut-off voltage to 48V, max charge current to 100A, max discharge current to 100A.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.
Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
Batterie au lithium de type Greensun Roller, qui est une batterie avec roues, Design élégant Montage au sol pour une installation rapide Très sûr et de haute qualitéavec la technologie LiFePO4 et Smart BMS
Batterie Lifepo4 polyvalente, dotée de cellules de classe A et de performances supérieures pour une longue durée de vie. Son montage au sol facilite son installation et son extension. Son système intelligent de gestion de batterie (BMS) assure une communication fluide avec la plupart des onduleurs.
High Power Output: Delivers up to 8 kW with the ability to connect up to 32 units, scalable to 512 kWh Long-lasting Battery Life: Utilizes LiFePO4 technology with over 6000 cycles, ensuring durability and longevity Built-in Circuit Protection: Features a built-in circuit breaker for safe charging (160A) and discharging (160A) Wide Operating Range: Capable of charging from 0℃ to 55℃ and discharging from -20℃ to 55℃ Remote Management: Supports remote monitoring and firmware upgrades via Deye inverter Flexible Installation: Suitable for both wall-mounted and floor-mounted setups Efficient Energy Use: Achieves 90% round-trip efficiency with a nominal usable energy of 14.4 kWh Robust Design: IP20 rating, designed for indoor use with high humidity tolerance (up to 95%)
Batterie externe Greensun 51,2 V 200 AhTrès sûr et de haute qualitéavec la technologie LiFePO4 et Smart BMS

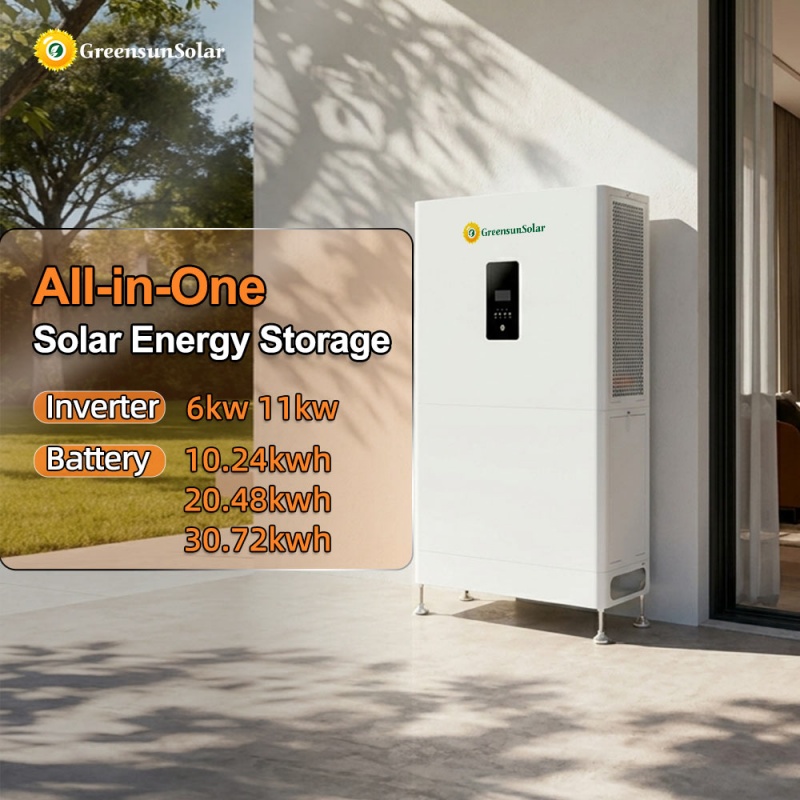

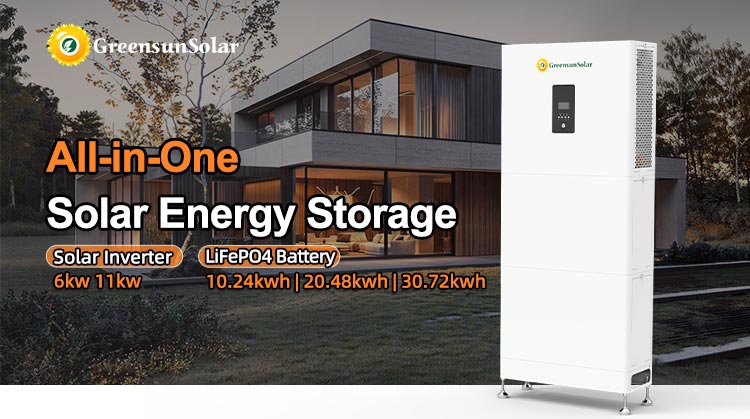

All-in-one solar and storage solution that integrates the inverter, battery charger, UPS-level switching, and battery enclosure into a pre-wired modular system for easier and faster installation Inverter: 6kw/11kw Battery: 10.24-30.72kwh
