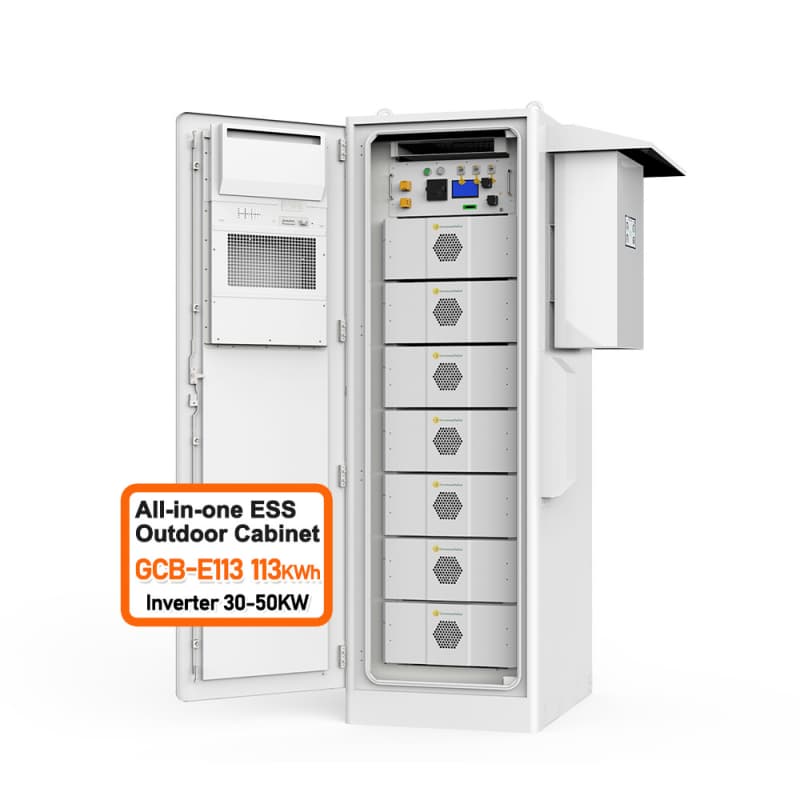

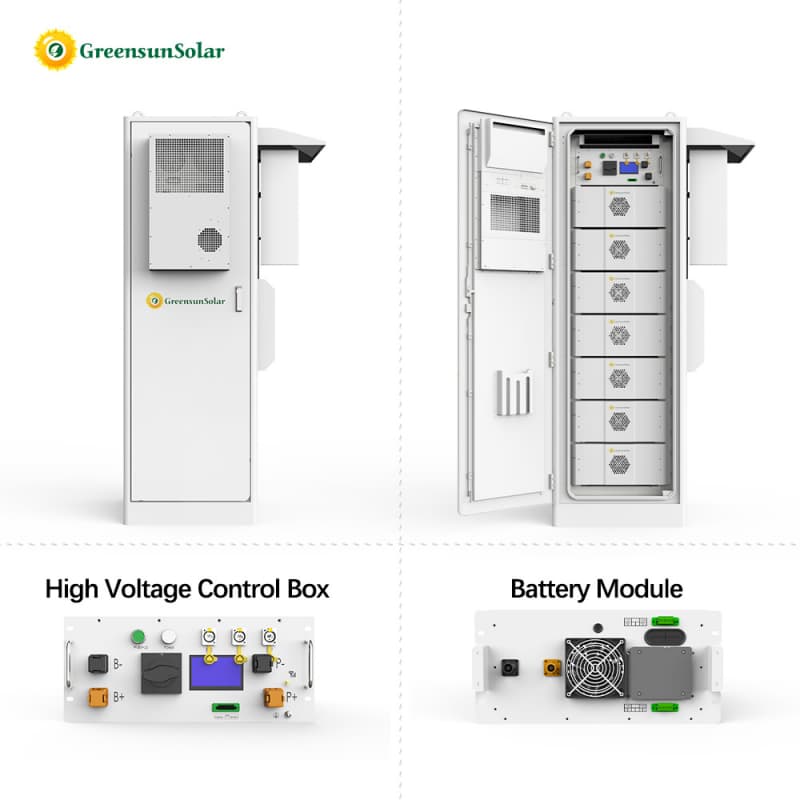

113KWH Lithium Battery BESS All In One Cabinet for energy storage system

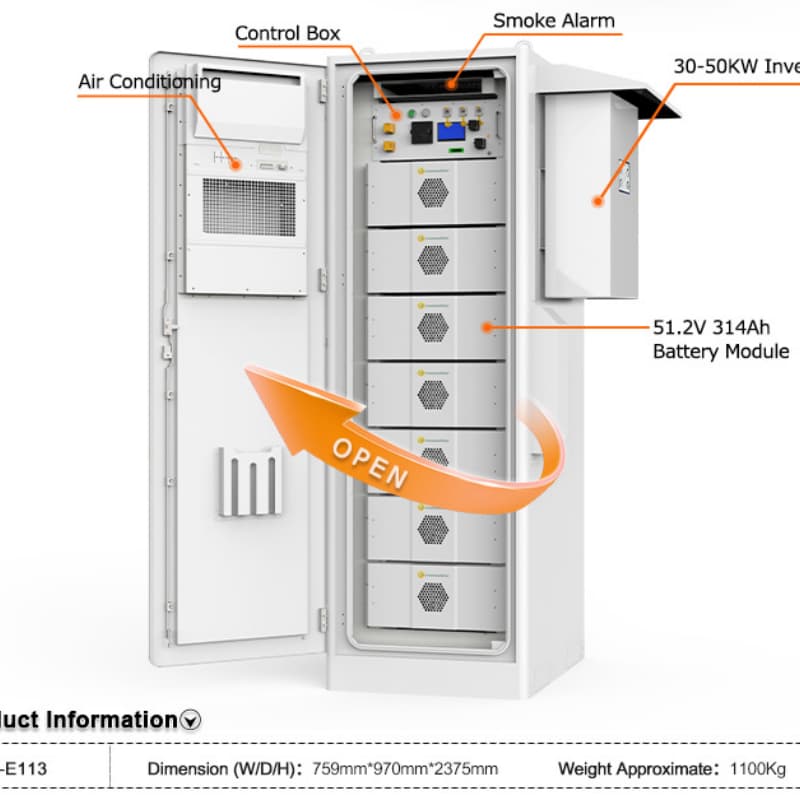

Greensun All in one outdoor cabinet

Lithium iron phosphate ( LFP ) batteries, battery packs
and systems all use aerosol fire suppression solutions

EMS, hybrid inverter and BMS integration technology
Power supply redundancy design
Support for black start function, off-grid operation

Supports up to 10 sets in parallel

  • Numéro d'article :

    113KWH BESS Outdoor all in one cabinet

  • Commande (MOQ) :

    Negotiable

  • Paiement :

    T/T, etc

  • Origine du produit :

    China

  • Couleur :

    White

  • Port d'expédition :

    Shanghai, Ningbo, Shenzhen

  • Délai de mise en œuvre :

    5-15 Days

  • Lester :

    According to Capacity
Renseignez-vous maintenant
CATÉGORIES DE PRODUITS
Nouveaux produits

113KWH Lithium Battery BESS All In One Cabinet for energy storage system

battery energy storage system

High voltage control box for hv

All-in-one Energy & Device Management Platform

Solar wifi monitoring software



241KWH Lithium Battery BESS All In One Cabinet Datasheet for Review

Model
GCB-E113
Cell Chemistry
LiFePO4
Module Energy (kWh)
16.076
Module Nominal Voltage (V)
51.2
Module Capacity (Ah)
314
Battery Module Qty In Series
7
System Nominal Voltage ( V )
358.4
System Operating Voltage ( V )
314V~398V
System Energy (kWh)
112.53
Charge/Discharge
Current(A)
157
Model
GCB-E113-30KW
GCB-E113-50KW
Nominal Output Power / UPS Power
30kw
50kw
AC Output Frequency and Voltage
50Hz/60Hz; 220V/380V,230V/400V
Grid Type
3L/N/PE
Number of Parallel ( Off-grid )
10
AC Output Rated Current ( A )
45.5A/43.5A
75.8A/72.5A
Battery Operating Voltage ( V )
160V~800V
Communication Port
CAN/RS485
Energy Configuration ( kWh )
112.53
Installation Method
Floor-Mounted
Operating Temperature ( °C )
-20~55°C
Warranty
10 years

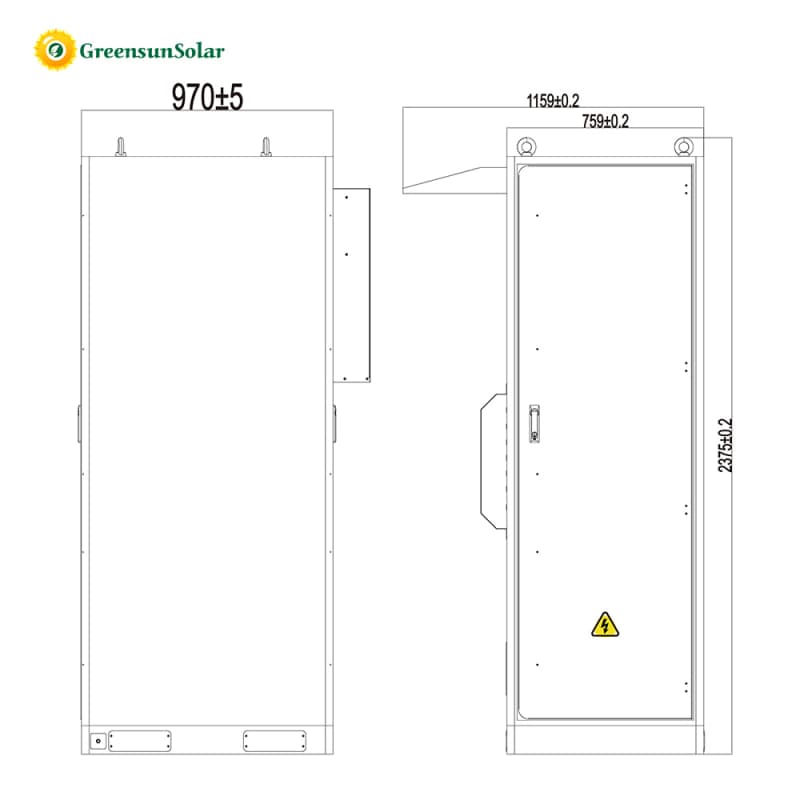

Dimension (W*D*H, mm)
759*970*2375mm
Weight Approximate (kg)
1100kg
Certification
UN38.3/MSDS

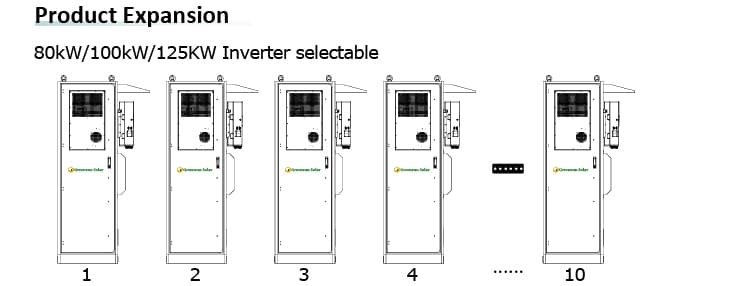

System Composition&Expansion

solar power batteries for home

solar panel parallel connection



Matching Inverter Brand

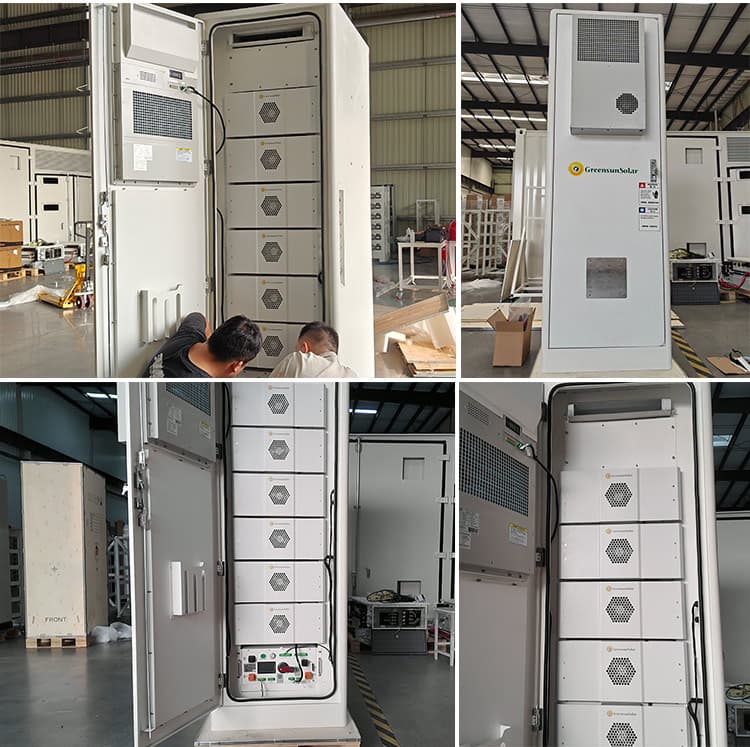

Factory&Products

Outdoor energy storage cabinet

bess battery energy storage system



International Standard Lithium Battery Transportation packaging
un38.3 standard
UN 38.3 Testing for Lithium Batteries

Our Advantages

1. We are a real factory and have strict requirements on the quality of products.

2. We provide OEM services for many leading companies around the world.
we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.

3. As a factory, we have better control over product costs.

4. Both production and delivery are very fast.

5. Also, we provide stable and long-term after-sales service.


Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,

lithium batteries offer significant advantages over traditional lead-acid batteries.

It offer increased safety, compact size, light weight, and fast charging.

It also offer lower self-discharge rates and higher energy density.

And also more user-friendly and have a longer lifespan.


We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.

Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.

Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.

This ensures that our products meet the needs of mid-range and high-end customers.


We also offer a 10-year warranty.

Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.

Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.

Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.


If you have any lithium-ion battery needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
