Numéro d'article :
Split phase 120/240V solar hybrid inverterCommande (MOQ) :
NegotiablePaiement :
T/T, etcOrigine du produit :
ChinaCouleur :
WhitePort d'expédition :
Shanghai, Ningbo, ShenzhenDélai de mise en œuvre :
5-15 DaysLester :

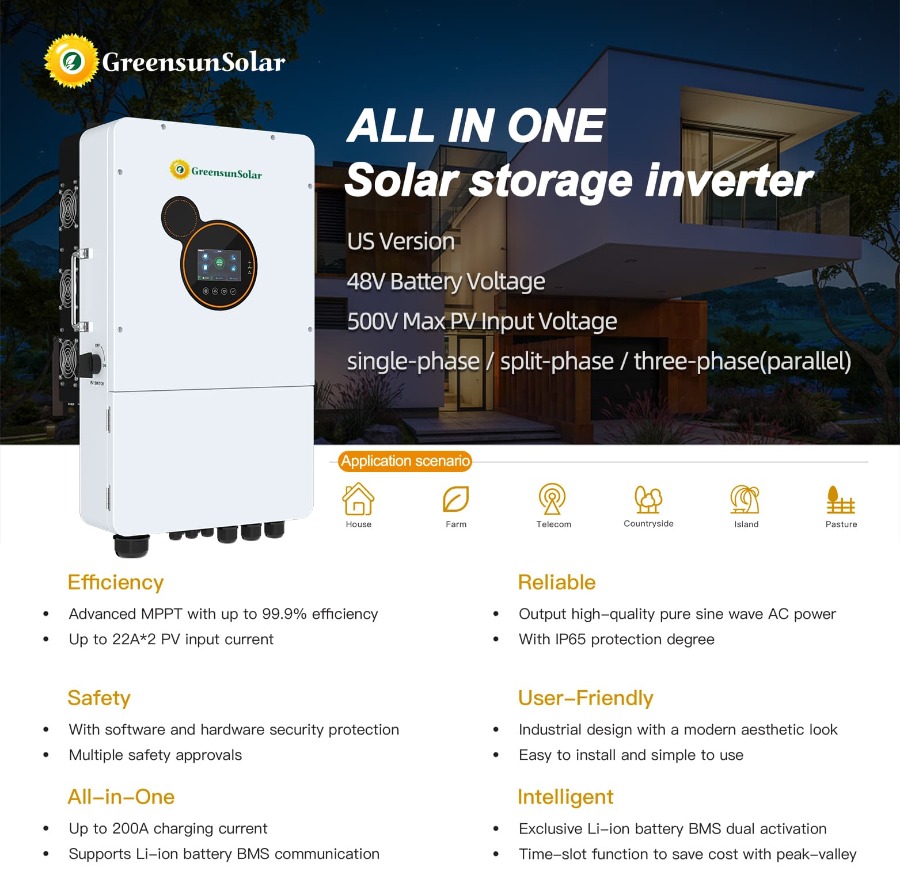

42KGAll In one solar hybrid inverter
Inverter Parameters
| Model | 8KW | 10KW | 12KW |
|
Rated Output Power
|
8,800W
|
10,000W
|
12,000W
|
|
Rated Output Voltage
|

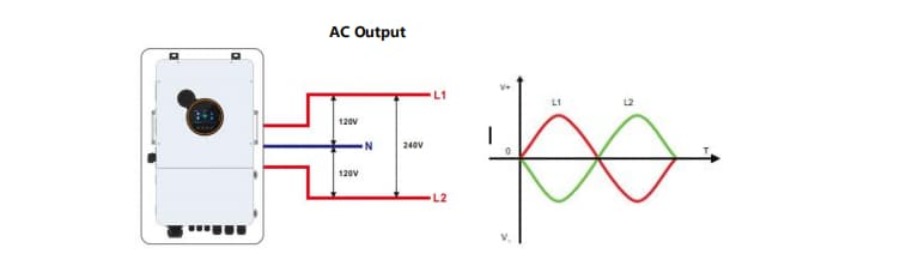

120/240Vac, single-phase / split-phase / three-phase(parallel)
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
|
|
Rated AC Frequency
|
50/60Hz
|
||
|
Battery Type
|
Lead-acid / Li-ion / User-defined
|
||
|
Rated Battery Voltage
|
48V
|
||
|
Max. PV Charging Current
|
200A
|
||
|
Num. of MPPT
|
2
|
||
|
Max. PV Array Power
|
5,500W+5,500W
|
6,600W+6,600W
|
|
|
Max. Input Current
|
22A+22A
|
||
|
Max. Open-circuit Voltage
|
500Vdc+500Vdc
|
||
|
MPPT Operating Voltage Range
|
125～450Vdc
|
||
|
Input Voltage Range
|
90～140Vac
|
||
|
Frequency Range
|
50/60Hz
|
||
|
Num. of Parallel
|
1～6 units
|
||
|
Dimensions
|
750*440*240mm (2.46*1.44*0.79ft)
|
||
|
Weight
|
42kg (92.59lb)
|
||
|
Embedded Interfaces
|
RS485 / CAN / USB / Dry contact
|
||
|
External Modules (optional)
|
Wi-Fi / GPRS
|
||
|
Safety
|
IEC62109-1, IEC62109-2
|
||

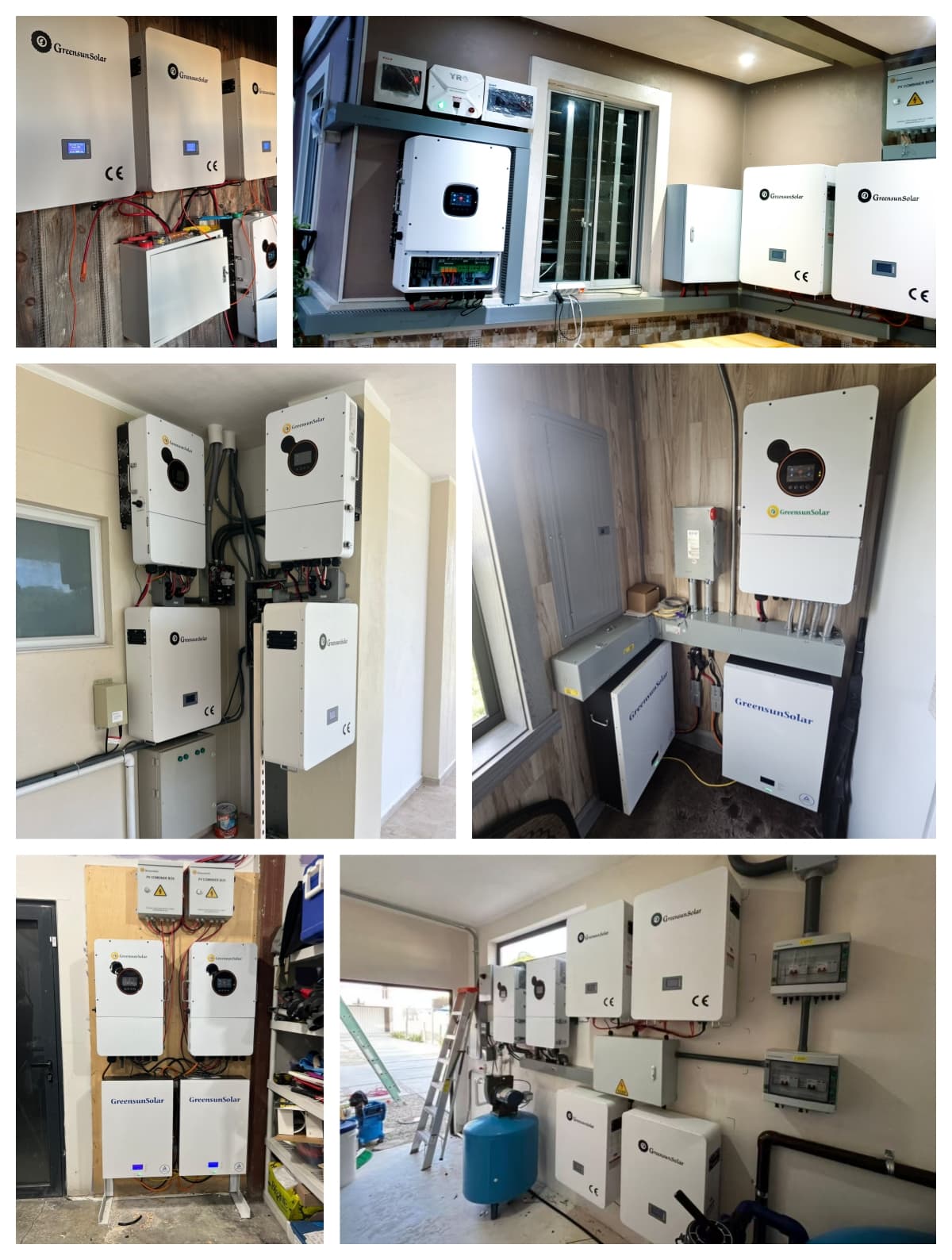

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.

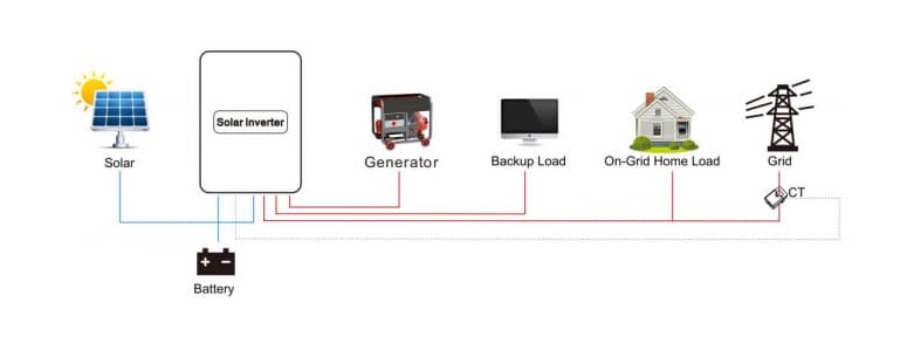

combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Advanced MPPT with up to 99.9% efficiency Up to 22A*2 PV input current With IP65 protection degree Up to 200A charging current Supports Li-ion battery BMS communication
Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging Intelligent Power supply Mode, Intelligent Distribution of Solal Panel/Mains/ Battery Power Shares Communication Option: External WIFI, Supervise at Any Time High Precision of output voltage,±5%, Take Care of Your Appliances
Sortie 100 % déséquilibrée, chaque phase Un couple de climatiseurs va moderniser son système solaire existant Max. 10 pièces parallèles pour réseau et hors réseau fonctionnement ; Prise en charge de plusieurs batteries en parallèle Prise en charge du stockage d'énergie à partir d'un générateur diesel
Réseau IPv6 pris en charge
