Greensun 1MWH Lithium Battery In Europe

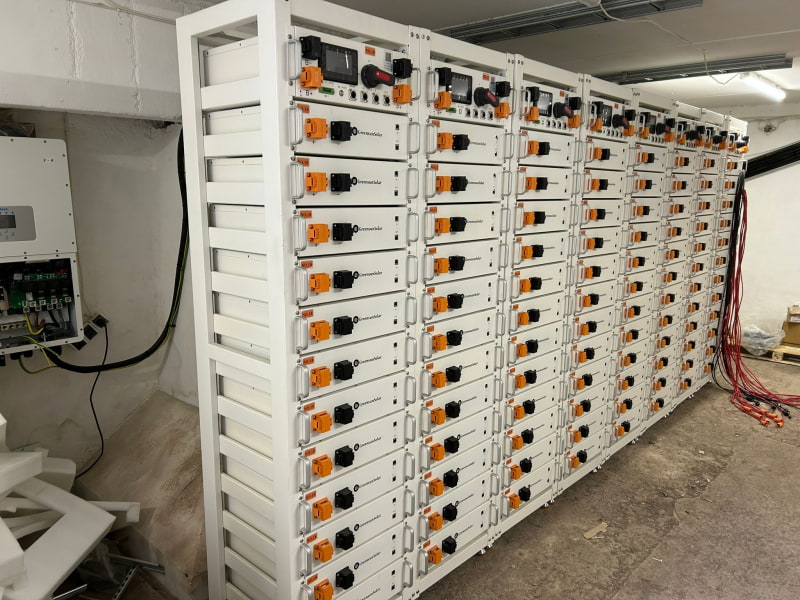

A solar energy storage system was installed in Latvia in June 2025. The specific configuration is as follows

Greensun solar battery: 614.4V 100AH lithium batteries One group, totally 18 groups

Deye Hybrid Inverter: 50KW hybrid Inverter, 9units

Solar Panel: Greensun 460W (GSM-MN12R/96HBD-460W) 1080units

Let us see how the design

1 Deye 50KW Hybrid Inverter 9units in parallel, totally 450KW hybrid

2 For the solar energy storage lithium batteries part:  each deye 50kw hybrid inverter can for 2 groups batteries (614.4V 100AH one group)

PS: Deye hybrid or Solis hybrid inverter more than 30KW usually have 2 groups Battery interface( B+ B-  B+B-).

Only Hybrid Inverter part in Parallel will be okay, the batteries part can sepearte, this is very good design, easier installation.

3 Solar panels parts: Just 20units 460W in series ( one group) and 6 groups in parallel for each 50KW hybrid inverter okay

Today just a simple share for a real case for a  450Kw solar power plant with 1105KWH lithium batteries storage
